热销40V1500W无刷直流电机用于草坪割草机园林工具连刀器直连刀片
- 类目：
- 汽摩及配件
产品详情
1. Specification of motor:
Type
SPM
Voltage
40v
Rated power
1500w
No-load speed
3600rpm
Maximum efficiency
90%
Maximum Torque
3.5Nm
Maximum current limit
60A
The motor is with Stator
diameter 120mm , 12 slots ,35mm and 40mm length ,
Lamination sheet material is 35WW270 , Thickness
0.35mm .
Properties :
1. 40V rated 3600RPM
2.KV 90 56V can use it .

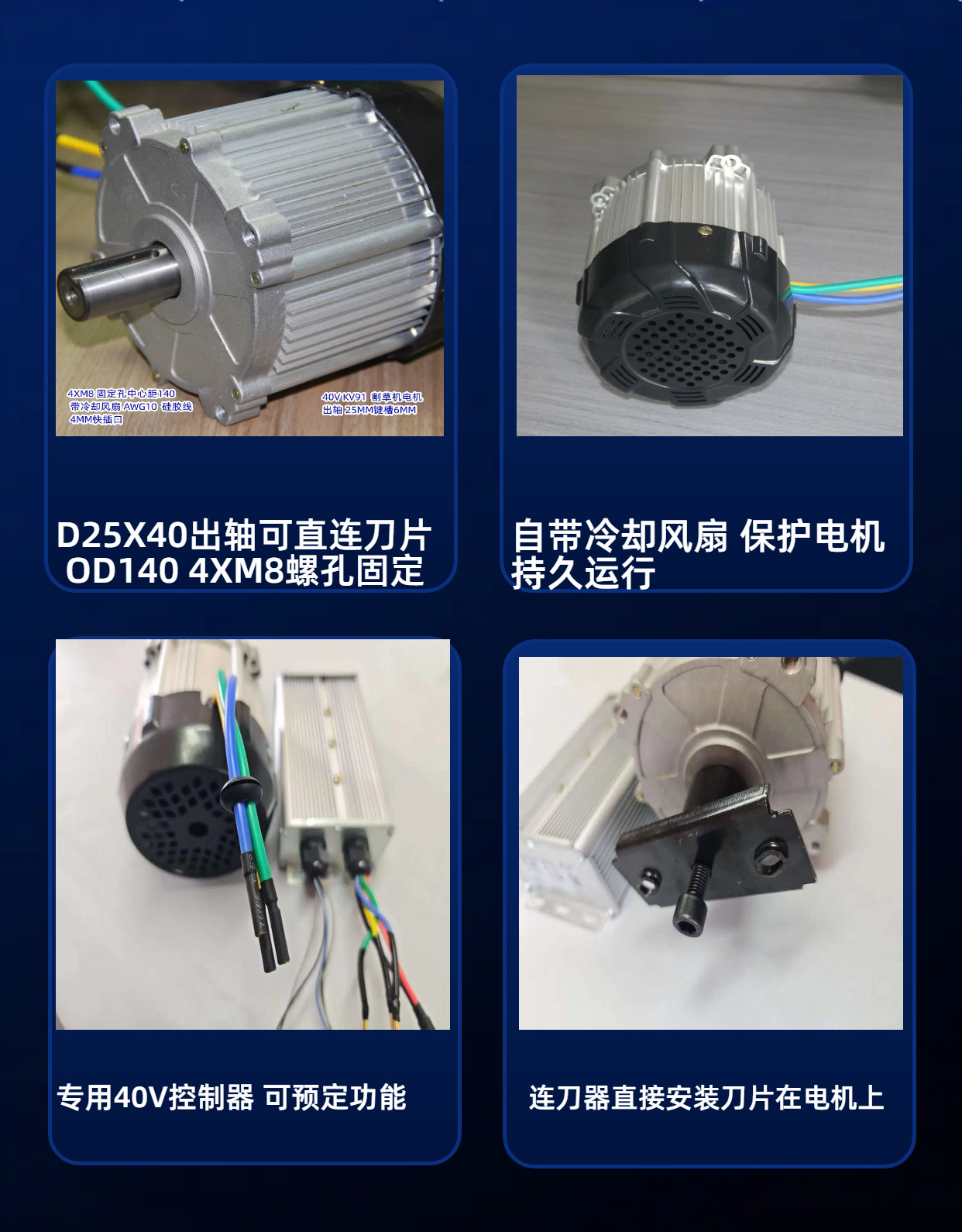

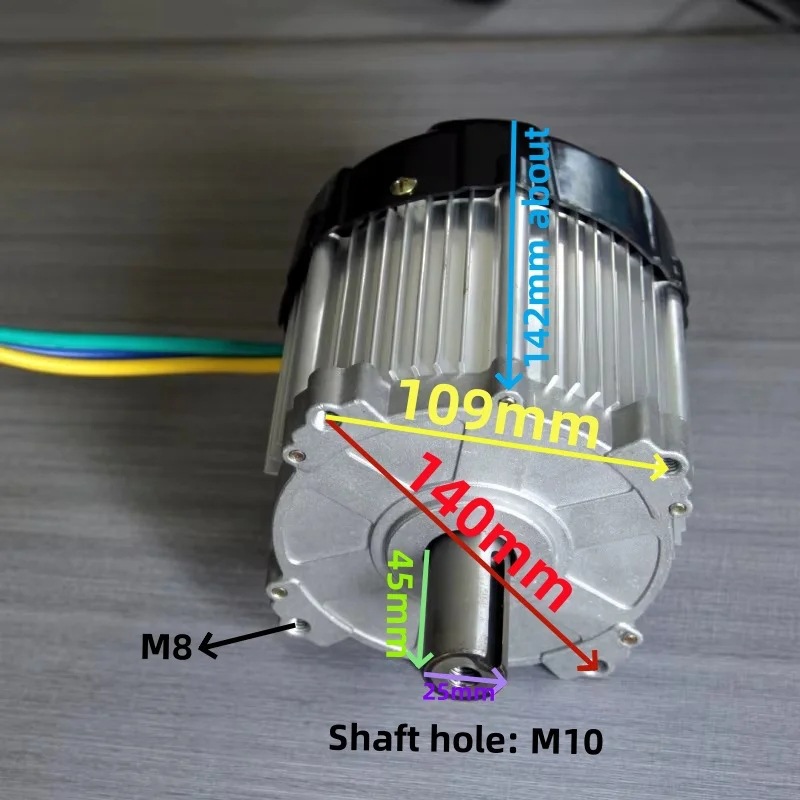

3.Outside shaft D 25 with 6mm keyway long 40mm
4. Power rated 1500W Peak 2000W ;
6. Fixing point 4X M 8 140 MM CICLE
7. SHAFT HOLE M 10 25MM DEPTH
8. Air cool with Fan
9. Without Hall sensors cable AWG 10 with AMASS
PLUG
10. Total length 100mm
11. Weight : 3.6KGS
热销40V1500W无刷直流电机用于草坪割草机园林工具连刀器直连刀片，批发价，价格：699，厂家直销，热销40V1500W无刷直流电机用于草坪割草机园林工具连刀器直连刀片，免费拿样。
